What Are Baffle Boxes and Why Are They Important?
Baffle boxes are a key component in modern stormwater management systems. Though their name might sound confusing, these structures play a critical role in protecting local waterways from pollution. Essentially, baffle boxes are underground chambers made of concrete or fiberglass that use internal walls—called baffles—to trap debris, trash, and harmful pollutants from stormwater runoff.
These systems are especially important in areas where heavy rainfall washes contaminants from roads into nearby water bodies. By capturing these pollutants before they reach natural water sources, baffle boxes help maintain the health of ecosystems and prevent environmental damage.
How Do Baffle Boxes Work?
The basic function of a baffle box is to slow down and filter stormwater as it flows through the system. As rainwater runs off streets and into storm drains, it enters the baffle box, which is designed with multiple chambers separated by baffles. These internal walls create a series of turns and obstacles that allow heavier particles like sediment, leaves, and trash to settle at the bottom of the box.
Some advanced baffle boxes also include special materials that remove nutrients such as nitrogen and phosphorus. These substances can cause harmful algal blooms if left unchecked, which can devastate aquatic habitats by depleting oxygen levels in the water.
The World’s Largest Baffle Box Is Being Installed
Melbourne is currently installing what is being called the largest baffle box in the world. Located at Apollo Boulevard near General Aviation Drive, this massive structure measures 30-by-31-by-24 feet. It's part of an effort to protect the Indian River Lagoon, a vital ecosystem that has been affected by years of pollution.
This baffle box is not just large—it's also highly effective. It will treat stormwater from an 854-acre drainage area, removing significant amounts of pollutants each year. Specifically, it is expected to eliminate around 3,380 pounds of nitrogen and 479 pounds of phosphorus annually before the water reaches the lagoon.
Key Features of the New Baffle Box
The baffle box includes a special treatment material known as Bold and Gold®. This biosorption activated media helps absorb and neutralize pollutants in the stormwater. City staff will remove and dispose of this material on a monthly basis at a local landfill.

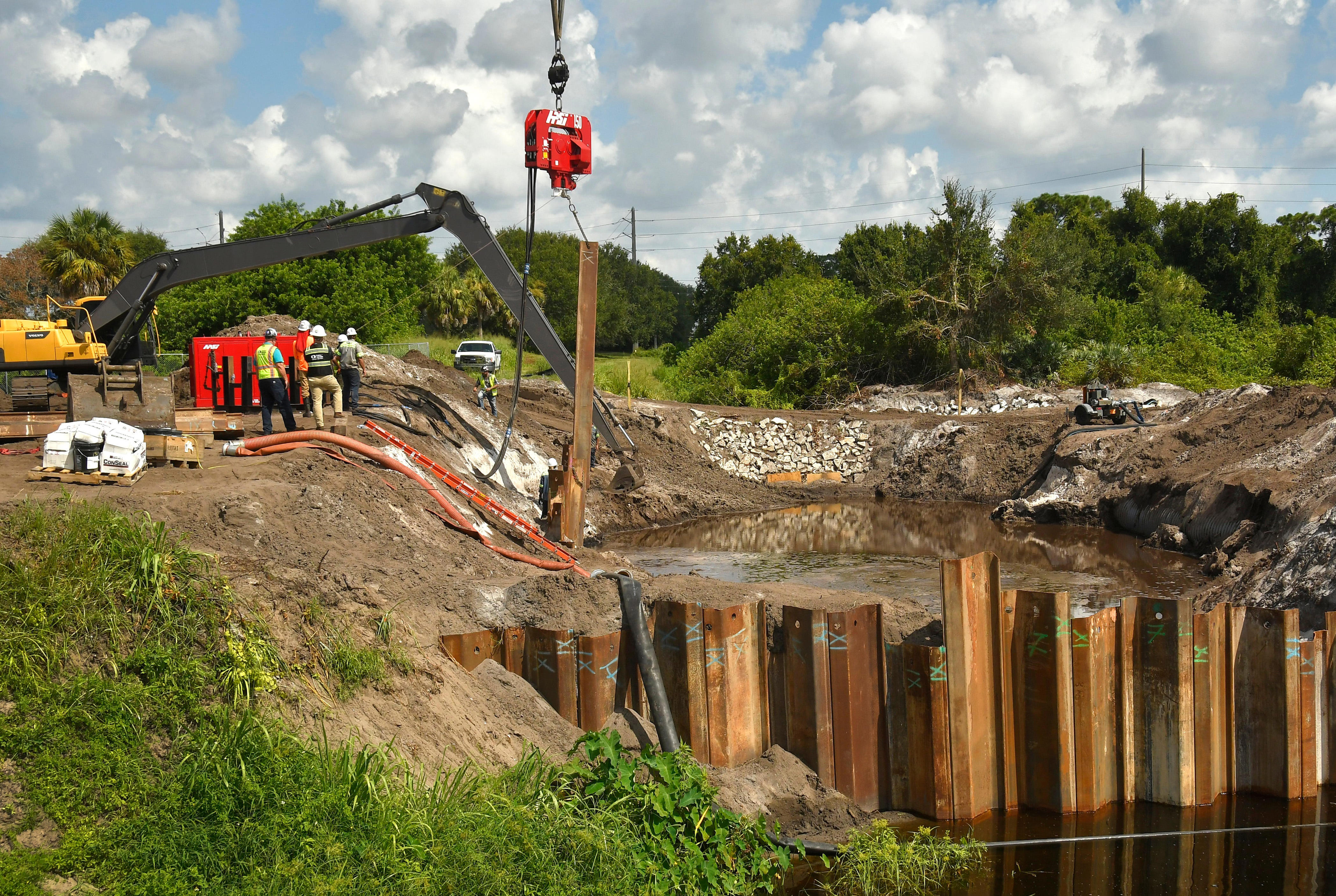

The installation process was no small task. The structure was transported in 24 separate pieces, requiring about a dozen semitrucks to deliver all the components. Once assembled, the baffle box will be one of 17 similar systems already in place across the city.
Why Is This Project Necessary?
The need for this baffle box comes from the fact that the area around Apollo Boulevard and General Aviation Drive was developed before modern stormwater management practices were widely adopted. As a result, polluted stormwater has long been discharged into the Indian River Lagoon, harming its delicate ecosystem.
To address this issue, the city is implementing baffle boxes and other stormwater treatment features in older neighborhoods. This project is part of a broader initiative to reduce pollution and improve water quality in the region.
Funding the Project
The total cost of the baffle box project is $2,103,474. Funding comes from several sources:
- Florida Department of Environmental Protection: $1,258,522
- Save Our Indian River Lagoon half-cent local infrastructure sales tax fund: $401,184 (approved by voters in November 2016)
- City's stormwater utility fund: Covers the remaining balance
This investment reflects the community’s commitment to preserving the Indian River Lagoon and ensuring a healthier environment for future generations.
